Trafimet MAXI 4000 Water cooled MIG welding torch

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 100 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: MAXI 4000

Certification: CE

Maximum Welding Thickness: Other

Application: Hand

Combustible Gas: Other

Flame Number: Multiple Flame

Size: Portable

Type: Other

Brand: HAILI

Welding Type: CO2 Welding Torch

Duty Cycle: 100%

Cable Length: 3m,4m,5m

Cooling Type: Water Cooled

Packing: Colorful Box

Delivery Time: 15 Days

MOQ: 100Sets

Wire Size: 1.0-2.4mm

Item Name: MAXI 4000 Water Cooled MIG Welding Torch

Additional Info

Packaging: each set packed in colorful box, each 5 sets packed in one master carton box

Productivity: 150,000

Brand: HAILI

Transportation: Ocean,Land,Air,by courier

Place of Origin: China

Supply Ability: Excellent

Certificate: CE

HS Code: 8515900090

Port: NINGBO,SHANGHAI,QINGDAO

Product Description

1, Product Datas:

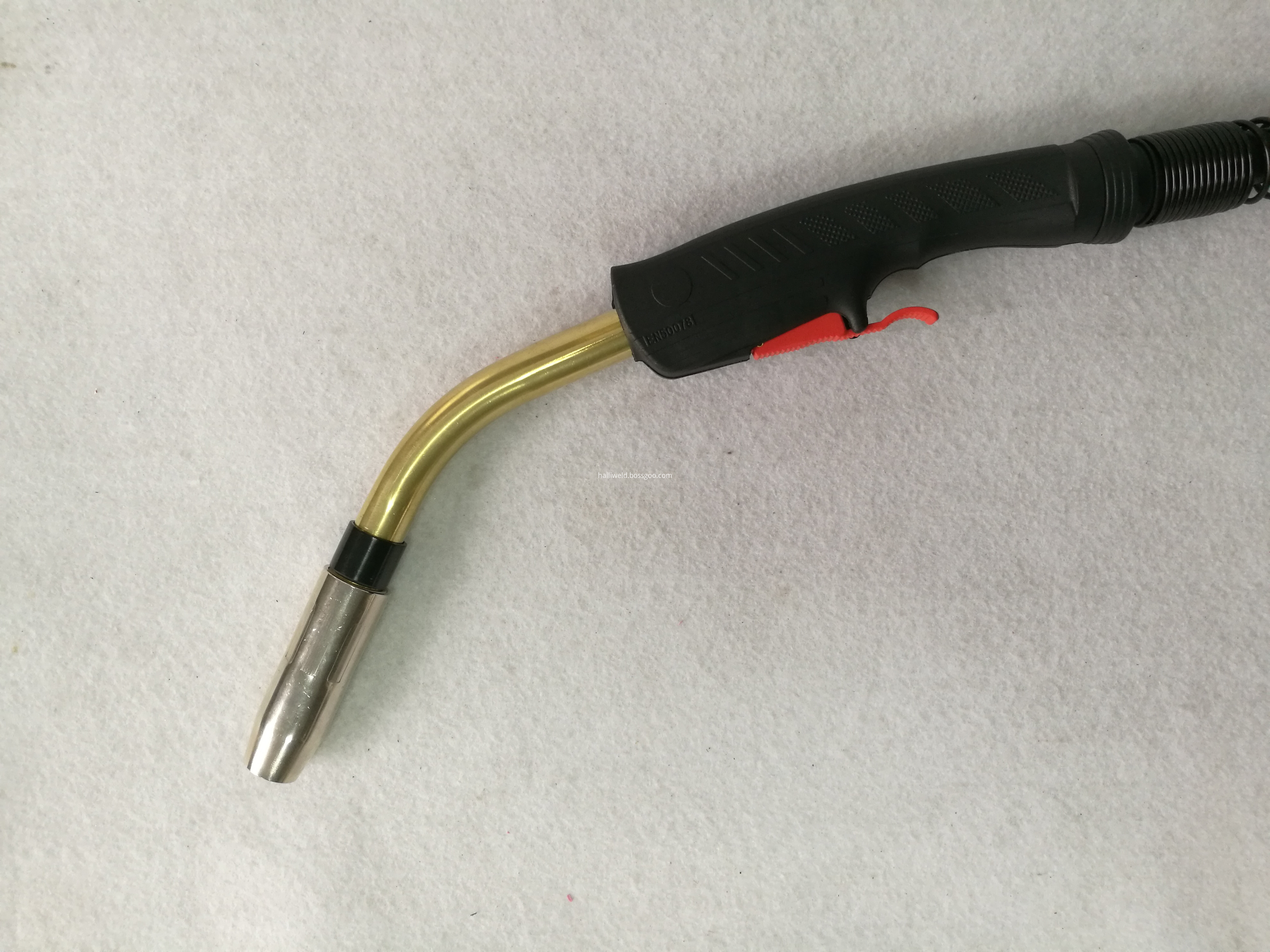

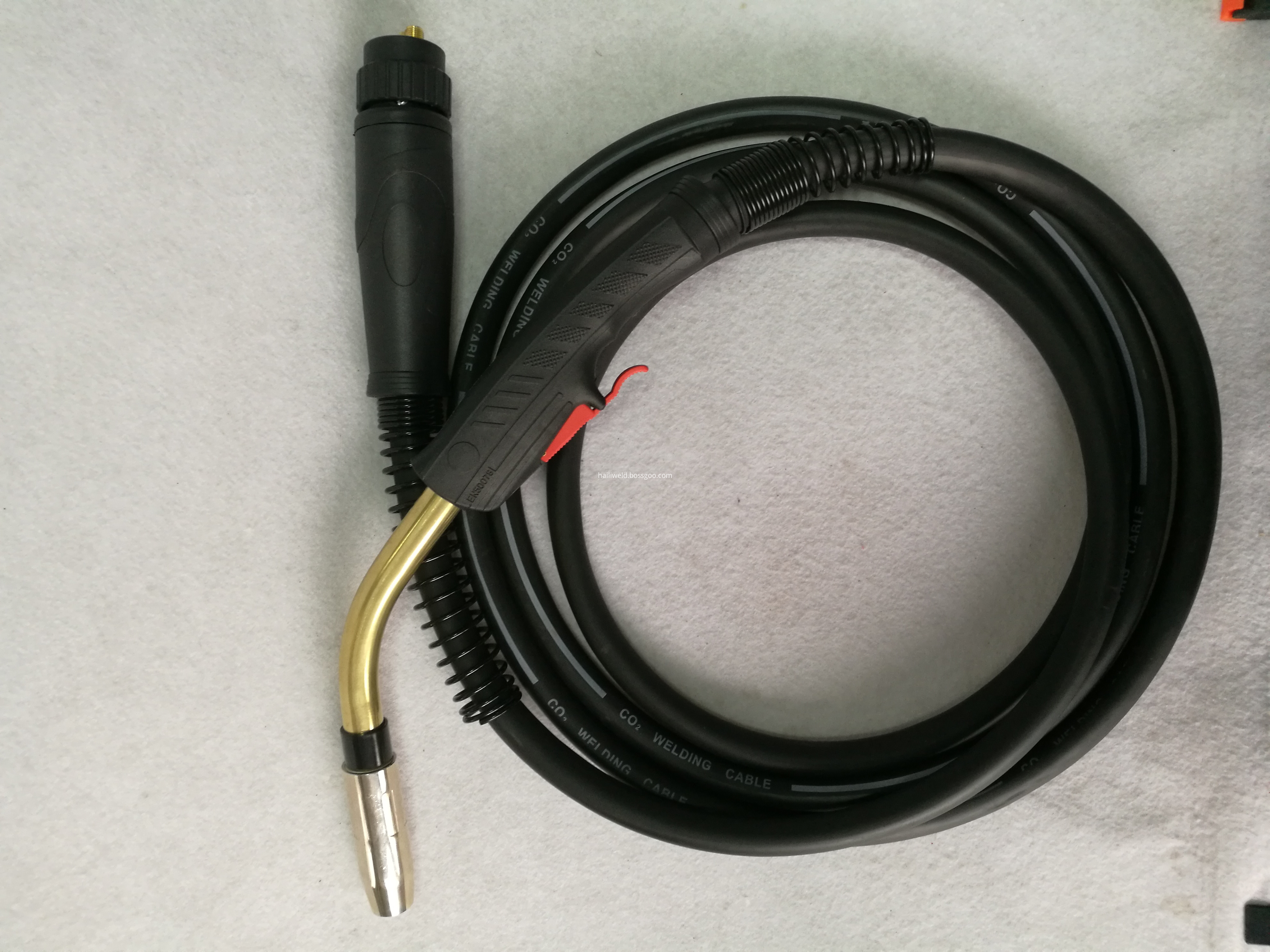

Trafimet MAXI 4000 Water cooled MIG welding torch

1. CO2 air protective welding torch.
2. Rating: 4000A CO2 350A Mixed Gases
3. Duty Cycle: 100%
4. Wire Size: 1.0-2.4mm
5. handle colour could be available
6. 3M, 4M ,5M is available.

7.All the torch accessories available

8, CE certificate

9, OEM, ODM service available

10, Special packaging available

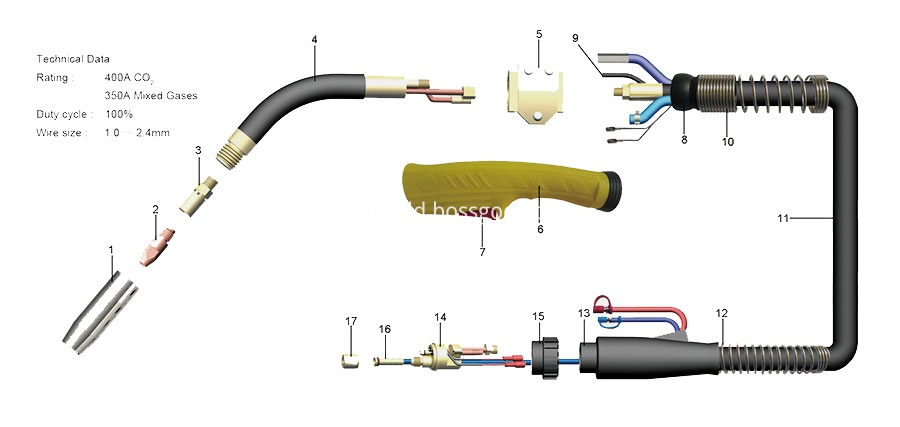

2, Products Details:

Maxi 4000 Water Cooled Mig Welding Torch For Trafimet


No. Description Order OEM p/n

MAXI 4000 Complete Torch3M 31012621 MB2343

MAXI 4000 Complete Torch5M  31012623 MB2345

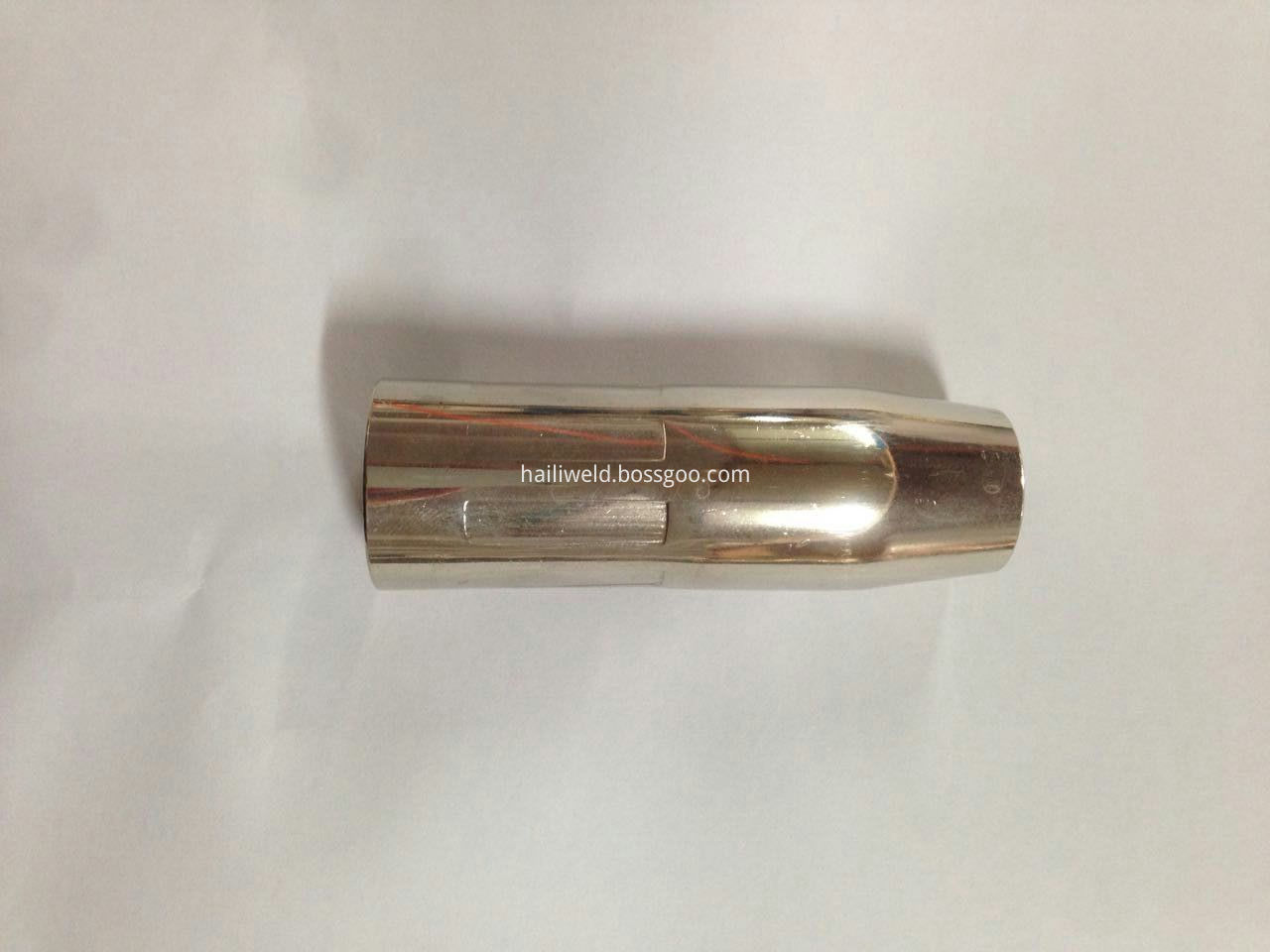

1 Nozzle Φ18mm  3106260 MC12
2 M8×30x1.0 Contact Tip, E-Cu 3102150 MD5-10

M8×30x1.2 Contact Tip, E-Cu 3102160 MD5-12

M8×30x1.4 Contact Tip, E-Cu  3102170 MD5-14

M8×30x1.6 Contact Tip, E-Cu  3102180 MD5-16

M8×30x1.0 Contact Tip, CuCrZr 3103110 MD5-80

M8×30x1.2 Contact Tip, CuCrZr 3103120 MD5-82

M8×30x1.4 Contact Tip, CuCrZr  3103121 MD5-84

M8×30x1.6 Contact Tip, CuCrZr  3103130 MD5-86

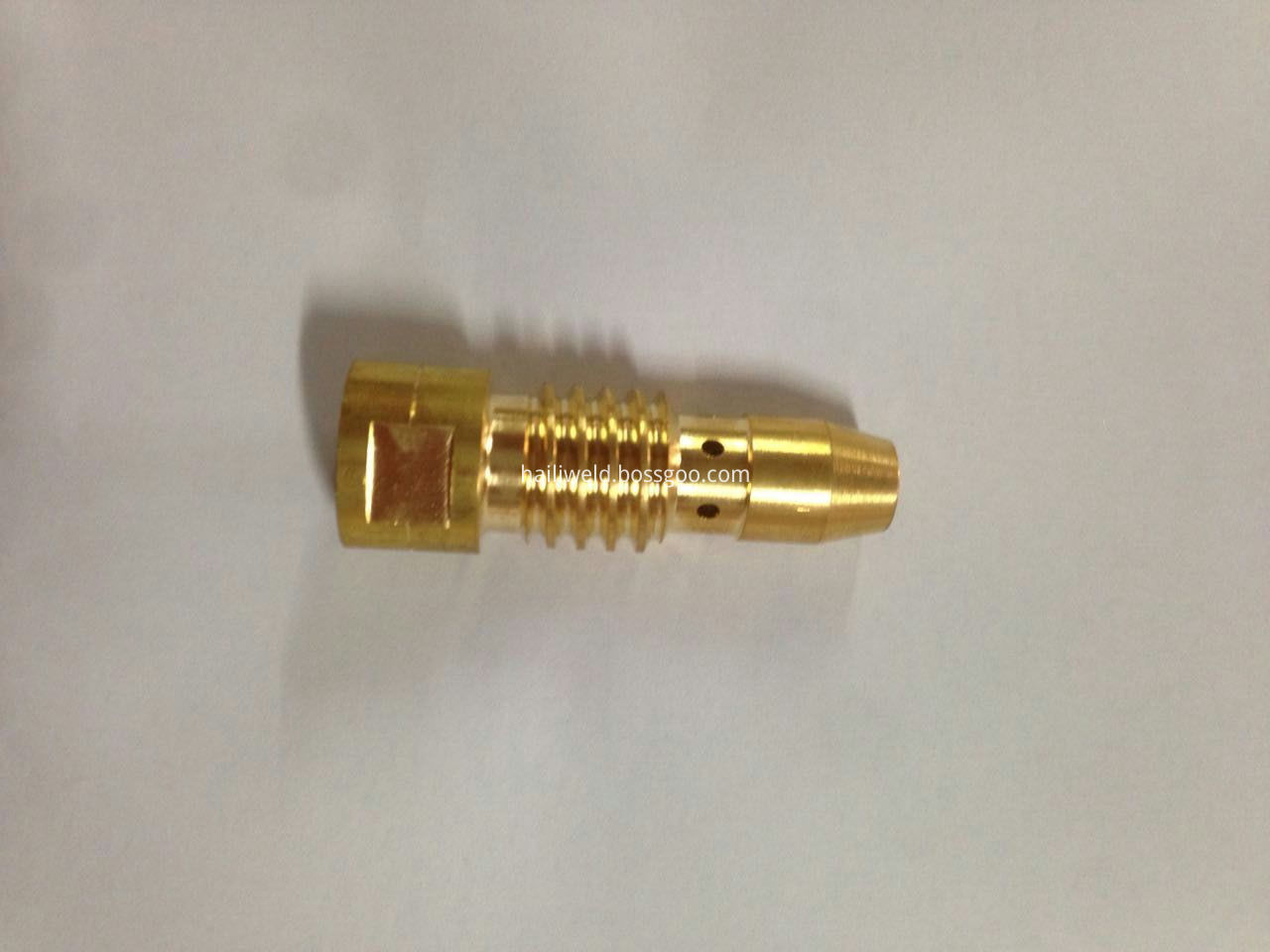

3 Contact Tip Holer  3105210 ME9
4 Swan Neck  3107092 MG16
5 Swan Neck Holder 3107093 MT117
6 Handle  3407055 MT104
7 Switch 3112195
8 Uniwesal Coupling 3407057 BW222
9 Switch Connector Collet  3112085
10 Front Cable Support Spring 3407171 EA320
11 Cable Assembly (18mm2),3M 31015051

Cable Assembly (18mm2),5M 31015052
12 Back Cable Support Spring  3407172
13 Cable Support Machine Side 3407056

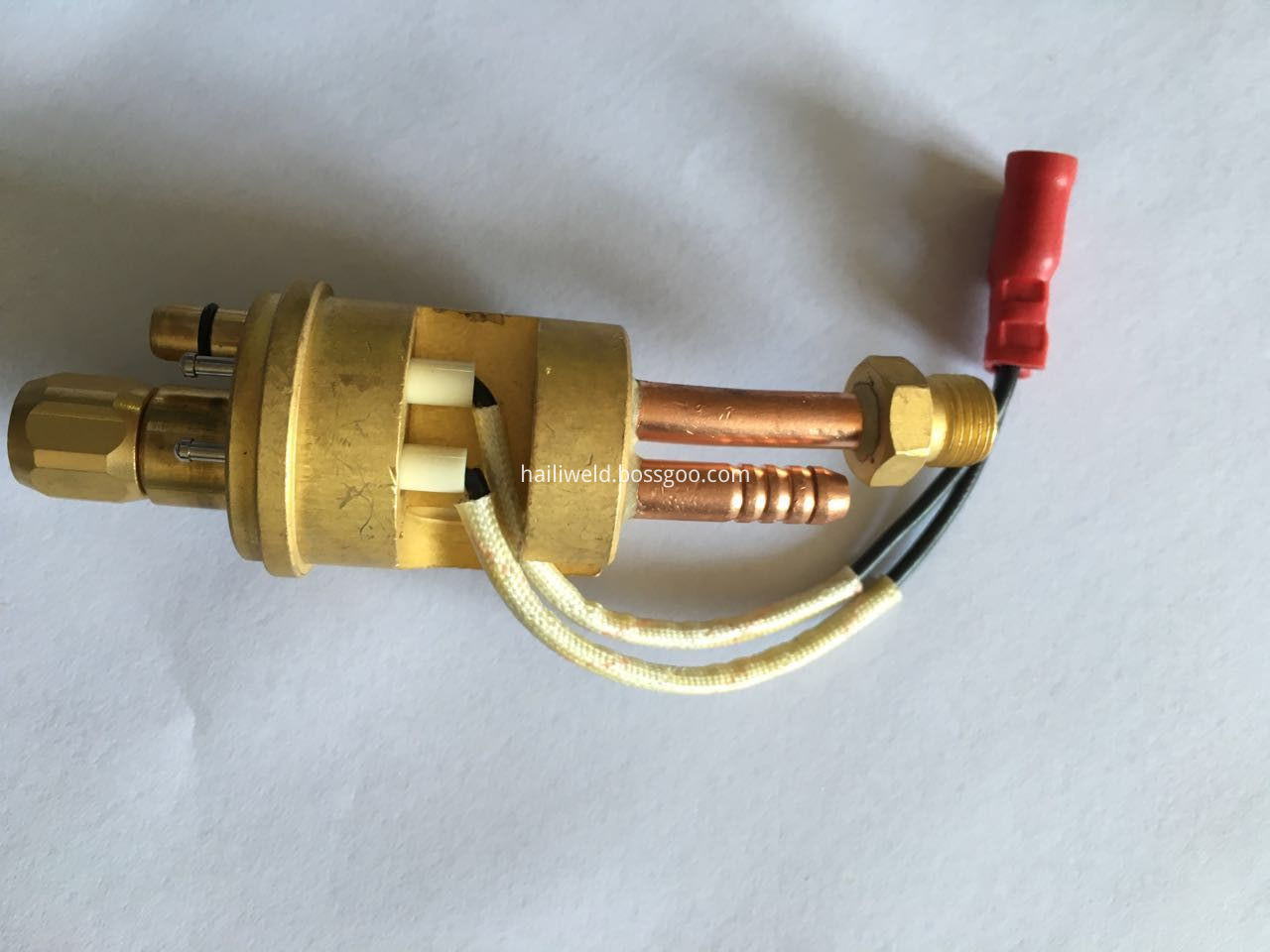

14 Central Connector WZ-2 31121931 501.0015
15 Adapter Nut 3112192
16 Blue Liner,For Wire Φ1.0-1.2,3.5M   31105644

Blue Liner,For Wire Φ1.0-1.2,5.5M 31105646
17 Nut M10x1 3112030 501.0082

























3,Product and Packaging details:

MAXI 450 air cooled MIG welding torch

MAXI 450 Water cooled MIG welding torch

Trafimet MAXI 450 air cooled MIG welding torch

MAXI 450 gas diffuser

MAXI 450 nozzle

MAXI 4000 central controbl plug body

welding torch panasonic 200a

4, Shaodong Lida Tools Co.,Ltd can produces :
1.MIG/MAG,CO2 welding torch and accessories :

Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard 300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco5#,Fronius AW4000,AW5000,AL3000, AL4000,Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc.
2.Tig welding torch and accessories : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) ,collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/medium/short cap etc.
3.Air plasma cutting torch and accessories :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp,welding cable
5.welding helmet,electorde holder
6.tungsten electrode

5, Company introdcution:

Shaodong Lida Tools Co.,Ltd is one of professional supplier of welding and cutting equipment and accessories in China since 2000.


The company specialize in manufacturing MIG,TIG,PLASMA, Welding torch and spare parts. The annual output of welding torch exceed 200,000 sets. We have obtained CE European safety certificate. Our main customers come from Southeast Asia, Middle&South&West Euro, Latin American market.

With international advanced technology, popular products design, integrating modern management, excellent quality, competitive price, and favorable sale and after-sales service. Our clients come from over 50 countries and regions around the world.

We expect you could become our new client as soon as possible. You will surely be satisfied with us. If you are interested in any of our products, please feel free to contact us for more details.

6, FAQ

Q1:Can I get a free samples to check the quality of trafimet mig welding torch ?
A:Sure,we can supply the free samples which price is low than US$5.


Q2:Will I afford the carrier charge of trafimet mig welding torch?
A:Yes,you will afford the express charge or your account is OK.


Q3:Can I add my trademark on my products of trafimet mig welding torch?
A:Yes,we need your certificate of authorization.


Q4:Welding torch payment terms of trafimet mig welding torch:
A: T/T,L/C,Western union all support


Q5:Welding torch delivery time of:
A: sample order 2 working days,500pcs order 10 working days.
Q6:Min order quantities:
A: 1pc trafimet mig welding torch
