Payment Type: | L/C,T/T,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF,EXW |
Min. Order: | 100 Set/Sets |
Delivery Time: | 20 Days |
Basic Info
Model No.: MB15
Certification: CE
Maximum Welding Thickness: Other
Application: Hand
Combustible Gas: Other
Flame Number: Multiple Flame
Size: Portable
Type: Other
Brand: HAILI
Welding Type: CO2 Welding Torch
Duty Cycle: 60%
Cable Length: 3m,4m,5m
Cooling Type: Air Cooled
Packing: Colorful Box
Delivery Time: 15 Days
Wire Size: 0.6-1.0mm
MOQ: 50 PCS
Item Name: MB15 Flexible MIG Torch Head
Additional Info
Packaging: each set packed in colorful box, each 5 sets packed in one master carton box
Productivity: 150,000
Brand: HAILI
Transportation: Ocean,Land,Air,by courier
Place of Origin: China
Supply Ability: Excellent
Certificate: CE
HS Code: 8515900090
Port: NINGBO,SHANGHAI,QINGDAO
Product Description
1, Product Datas:

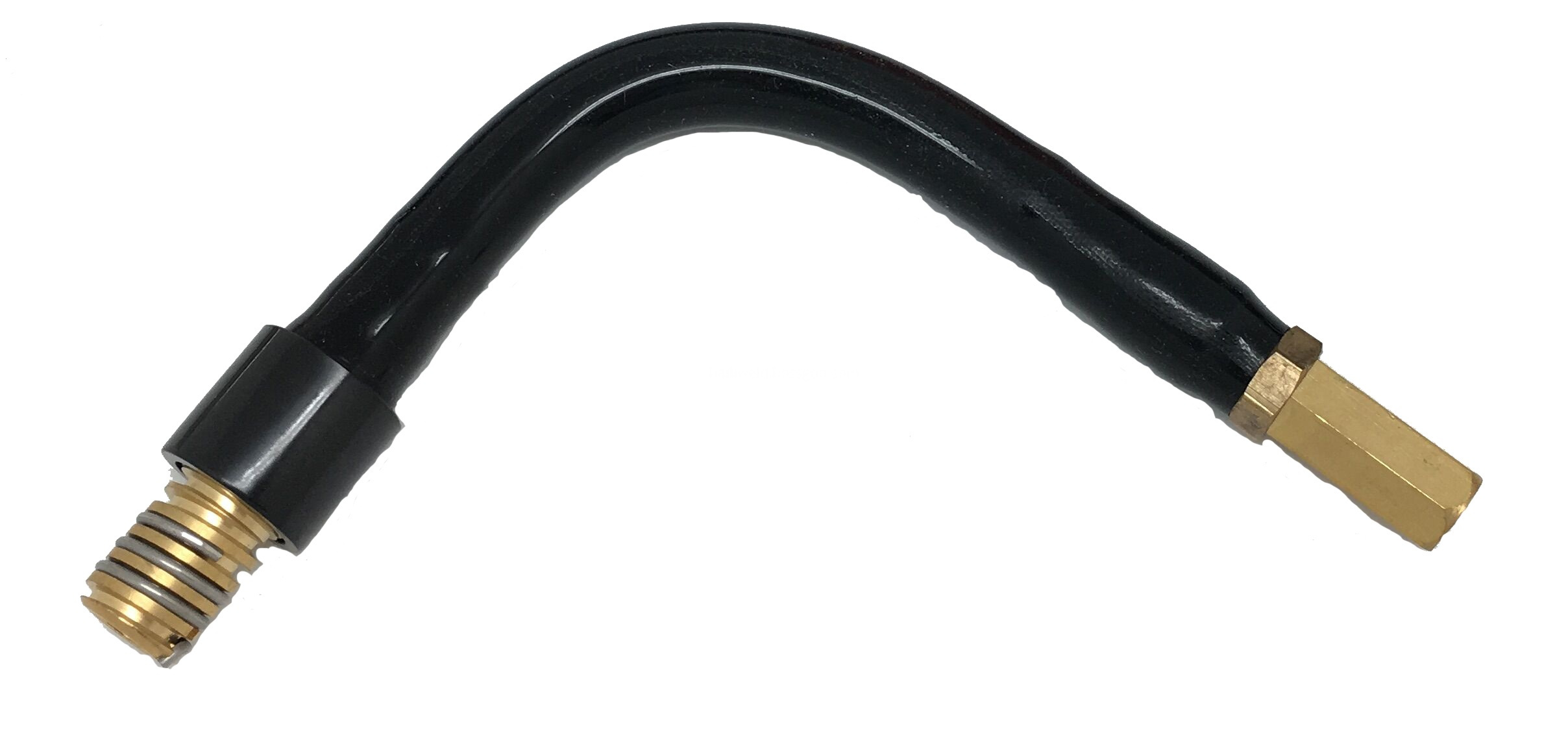

Binzel MB15 Torch Swan Neck 002.0009

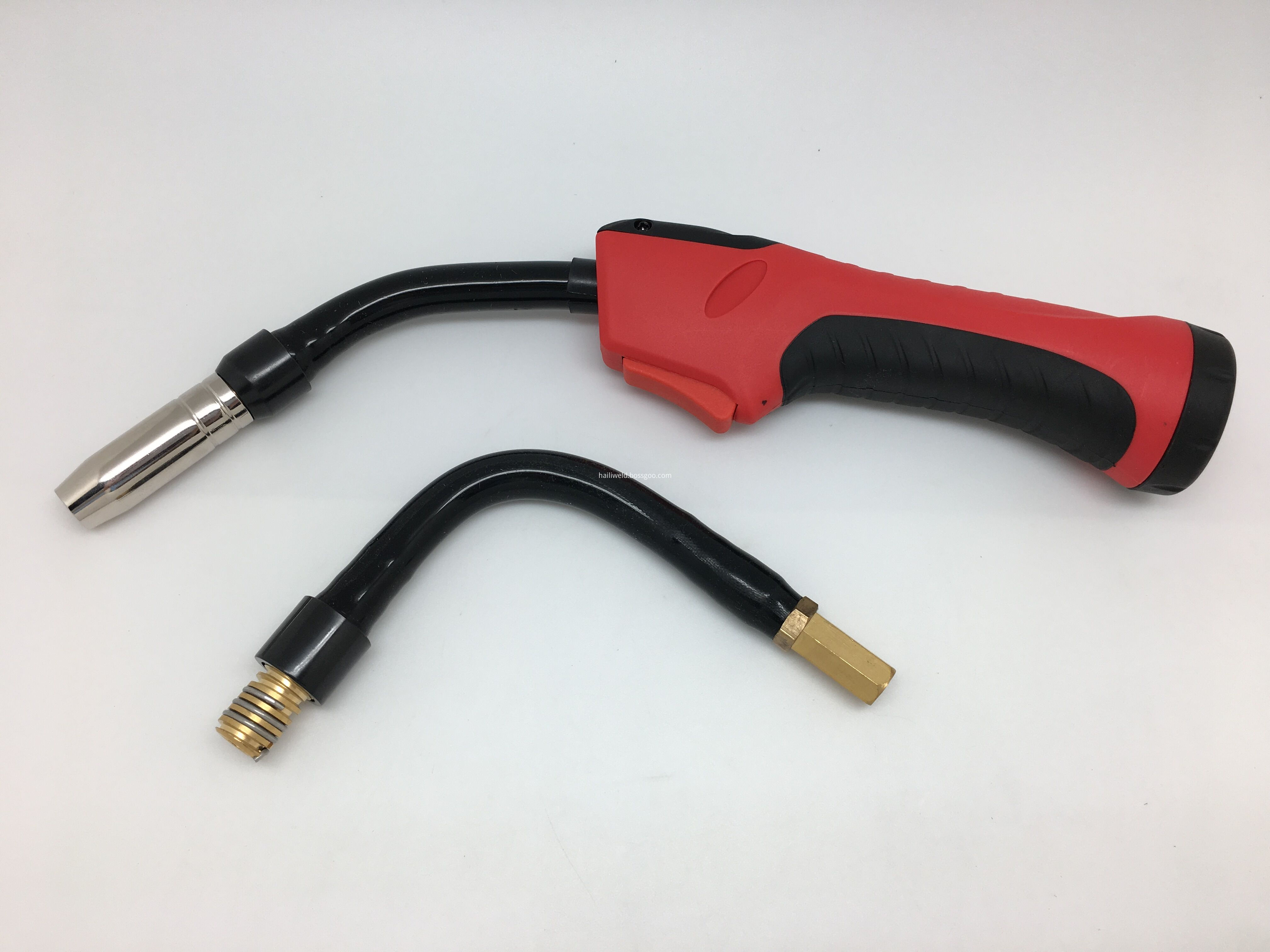

HAILI 15AK air cooled mig mag welding torch
1. CO2 air protective welding torch.7.All the torch accessories available
8, CE certificate
9, OEM, ODM service available
10, Special packaging available
2, Products Details:
No. | Description | OEM p/n |
|
15AK Complete Torch 3M |
|
|
15AK Complete Torch 4M |
|
|
15AK Complete Torch 5M |
|
1 | Cylindrical Nozzle Φ16mm | 145.0041 |
2 | Conical Nozzle Φ12mm | 145.0075 |
3 | Tapered Nozzle Φ9.5mm | 145.0123 |
4 | M6x25x0.6 Contact Tip, E-Cu | 140.0008 |
|
M6x25x0.8 Contact Tip, E-Cu | 140.0059 |
|
M6x25x0.9 Contact Tip, E-Cu | 140.0177 |
|
M6x25x1.0 Contact Tip, E-Cu | 140.0253 |
|
M6x25x0.6 Contact Tip, CuCrZr | 140.0855 |
|
M6x25x0.8 Contact Tip, CuCrZr | 140.0062 |
|
M6x25x1.0 Contact Tip, CuCrZr | 140.0256 |
5 | Nozzle Spring | 2.0058 |
6 | Gas Nozzle Holder | 2.0078 |
7 | Swan Neck | 2.0009 |
8 | Plastic Nut | 400.0044 |
9 | Ball Joint Cable Support Spring |
|
10a | Handle BWM-III BLUE-GRAY |
|
10b | Handle BWM-III RED-GRAY |
|
11 | Switch | 185.0031 |
12 | Cable Assembly(16mm2),3M |
|
|
Cable Assembly(16mm2),5M |
|
13 | Cable Support Spring |
|
14 | Cable Support Machine Side | 501.2248 |
15 | Central Connector KZ-2 | 501.0003 |
16 | Adapter Nut | 500.0213 |
17 | Green Liner,For wire Φ0.8-1.0,3.5M |
|
|
Green Liner,For wire Φ0.8-1.0,5.5M |
|
18 | Nut M10x1 | 501.0082 |
18 | Cable Support Machine Side |
|
19 | Red Liner,For wire Φ1.2-1.6,3.5M |
|
|
Red Liner,For wire Φ1.2-1.6,5.5M |
|
4, Shaodong Lida Tools Co.,Ltd can produces :
1.MIG/MAG,CO2 welding torch and accessories :
Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard 300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco5#,Fronius AW4000,AW5000,AL3000, AL4000,Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc.
2.Tig welding torch and accessories : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) ,collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/medium/short cap etc.
3.Air plasma cutting torch and accessories :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp,welding cable
5.welding helmet,electorde holder
6.tungsten electrode
5, Company introdcution:
Shaodong Lida Tools Co.,Ltd is one of professional supplier of welding and cutting equipment and accessories in China since 2000.
The company specialize in manufacturing MIG,TIG,PLASMA, Welding torch and spare parts. The annual output of welding torch exceed 200,000 sets. We have obtained CE European safety certificate. Our main customers come from Southeast Asia, Middle&South&West Euro, Latin American market.
With international advanced technology, popular products design, integrating modern management, excellent quality, competitive price, and favorable sale and after-sales service. Our clients come from over 50 countries and regions around the world.
We expect you could become our new client as soon as possible. You will surely be satisfied with us. If you are interested in any of our products, please feel free to contact us for more details.
6, FAQ
Q1:Can I get a free samples to check the quality of binzel mig welding torch ?
A:Sure,we can supply the free samples which price is low than US$5.
Q2:Will I afford the carrier charge of binzel mig welding torch?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products of binzel mig welding torch?
A:Yes,we need your certificate of authorization.
Q4:Welding torch payment terms of binzel mig welding torch:
A: T/T,L/C,Western union all support
Q5:Welding torch delivery time of:
A: sample order 2 working days,500pcs order 10 working days.
Q6:Min order quantities:
A: 1pc binzel mig welding torch
