plasma torch consumables air nozzle parts cb70 PC0032

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	50 Set/Sets
Delivery Time:	20 Days

Contact Now

Basic Info

Model No.: CB70

Additional Info

Packaging: each set packed in colorful box, each 5 sets packed in one master carton box

Productivity: 150,000

Brand: HAILI

Transportation: Ocean,Land,Air,by courier

Place of Origin: China

Supply Ability: Excellent

Certificate: CE

HS Code: 8515900090

Port: NINGBO,SHANGHAI,QINGDAO

Product Description

1, Product Datas:

S-75 Low Frequency Air Cooled Plasma Cutting Torch

Standard Length: 5 Meter

Air Pressure:4.5~5.5 bar

Duty Cycle 60%: 70A

Optional connection: 9/16-18UNF,M16x1.5,M14x1.5,M14x1,G1/4

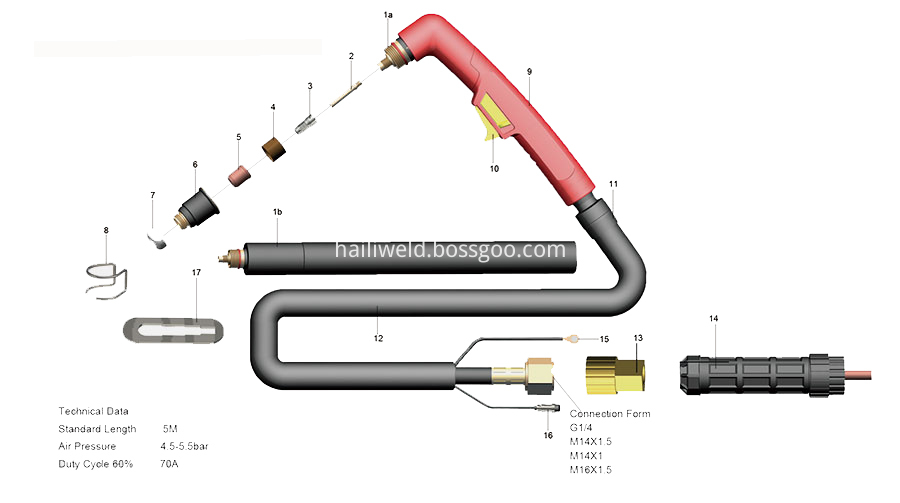

2, Products Details:

S 75 Air Cooled Plasma Cutting Torch

No.	Description	Order	OEM p/n
	S-75 Complete Torch G1/4 5M	33010841
	S-75 Complete Torch Central Adaptor 5M	33010842
	S-75 Complete Torch M14x1.5 5M	33010843
	S-75 Complete Torch M16x1.5 5M	33010844
	S-75P Complete Torch G1/4 5M	33010845
	S-75P Complete Torch Central Adaptor 5M	33010846
	S-75P Complete Torch M14x1.5 5M	33010847
	S-75P Complete Torch M16x1.5 5M	33010848
1a	S-75 Hand Torch Head	3302380	EA0223
1b	S-75P Machine Torch Head	3302381	PF0137
2	Gas Cooling Tube	3306107	PH0647
3	Electrode	3303280	PR0117
4	Swirl Ring	3305141	PE0112
5	Nozzle 1.0mm	33032901	PD0114-10
	Nozzle 1.2mm	33032902	PD0114-12
6	Shield	3304314	PC0114
7	Ceramic Shield	3304315	CV0076
8	Space Spring	3407024	CV0028
9	Handle	3407027
10	Switch	31120832
11	Uniwersal Coupling	3407412
12	Cable Assembly	3403100
13	Nut Cup	3112091
14	Central Adaptor	3112193	FY0023
15	Pilot Cable	3403089
16	Small 2-Pin Plug	31121401
17	Spanner	33060924

3,More Photos:

S-75 Low frequency air cooled plasma cutting torch . S-75 plasma cutting torch consumables

electrode PR0117

S-75 electrode PR0117

S-75 nozzle 1.0mm PD0114-10

S-75 shield PC0114

S-75 space spring CV0028

S-75 swirl ring PE0112

swirl ring PE0112

Plasma Torches

Factory 1 Factory 2

4, Shaodong Lida Tools Co.,Ltd can produces :

1.MIG/MAG,CO2 welding torch and accessories :Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard 300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco5#,Fronius AW4000,AW5000,AL3000, AL4000,Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc. 2.Tig welding torch and accessories : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) ,collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/medium/short cap etc.

3.Air plasma cutting torch and accessories :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp,welding cable
5.welding helmet,electorde holder
6.tungsten electrode
